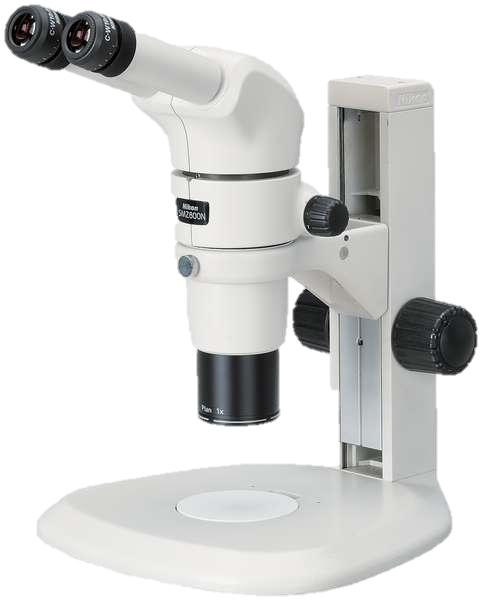

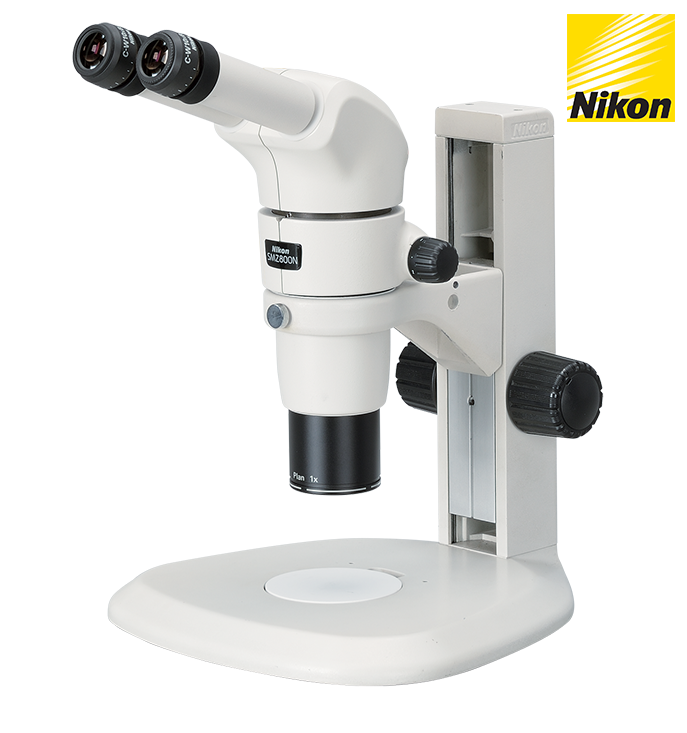

Versatile stereo microscope with improved operability and basic performance.
The SMZ800N offers higher magnification than conventional models, enabling high-resolution observation of minute structures.
In combination with the new objective series, its improved chromatic aberration correction provides bright and sharp images through the entire viewfield.
The parallel optics design allows ergonomic accessories and observation attachments to be used in a wide range of applications.
![](https://nitechbio.co.kr/data/goodsImages/GOODS1_1592371060.png)
Superior basic performance
The SMZ800N comes with a wide zoom ratio of 8:1 (1 - 8x zoom range) and enables high resolution observation of 640LP/mm (using ED Plan Apo 2x/WF at maximum zoom) with its high-NA optics.
Semi-Apochromat optics have been adopted for the lenses in the SMZ800N zoom body to achieve chromatic aberration correction throughout the viewfield.
-

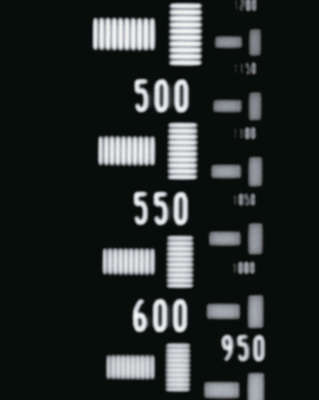

SMZ800N
-

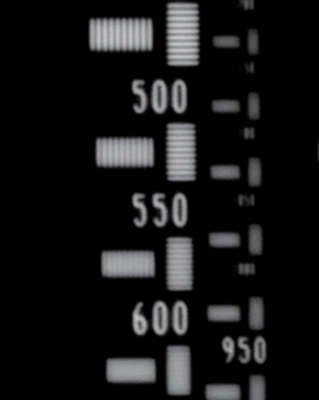

Conventional model

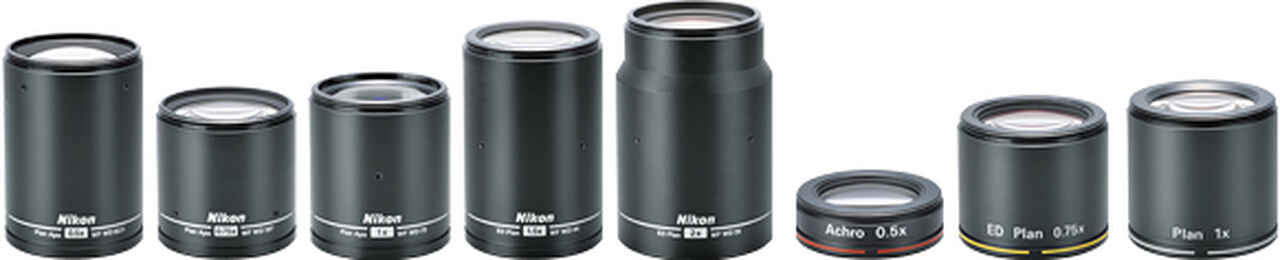

Diverse lineup of objectives
A wide selection of newly developed objectives with various magnifications and working distances are available for the SMZ800N.
These include high-NA, high-resolution and wide-viewfield Plan Apo WF series objectives with superior image flatness and chromatic aberration correction. In addition, a 0.75x objective is now available, expanding the lineup of low magnification objectives.
Expandable with a wide range of accessories
In addition to basic optional accessories, the same high level of accessories used with superior models are also available for this model.

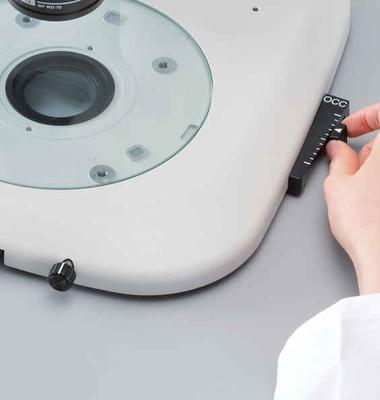

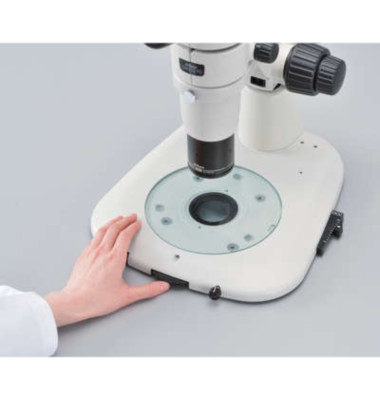

These include trinocular tubes and slim-type LED diascopic illumination stands.
These allow various microscope configurations to suit numerous routine inspections and a range of research and development applications.
-
Sample: Brain of adult Drosophila expressing GFP.
Image courtesy of Hokto Kazama, Ph.D., Circuit Me -
Sample: Fibers

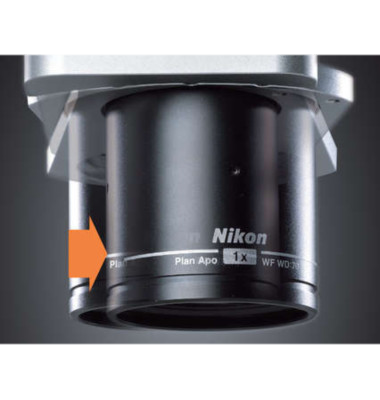

On-axis observation with the nosepiece
The double nosepiece offers easy on-axis imaging, enabling observation of the bottom of holes, accurate simple measurement and extended depth-of-focus (EDF) imaging without distortion.
-

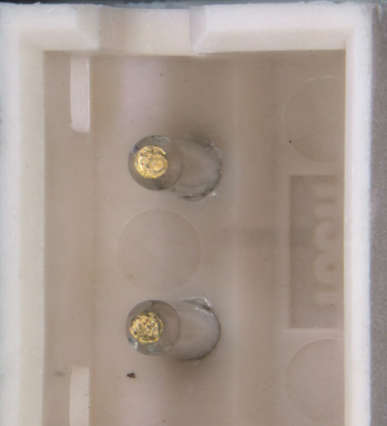

On-axis view
-
Without nosepiece
-

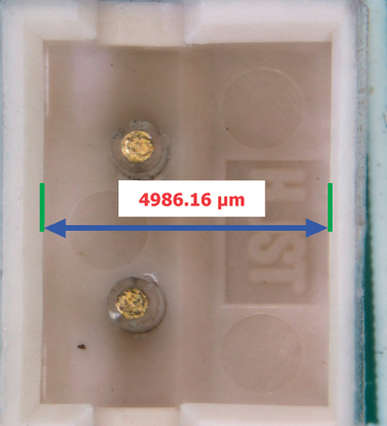

On-axis imaging

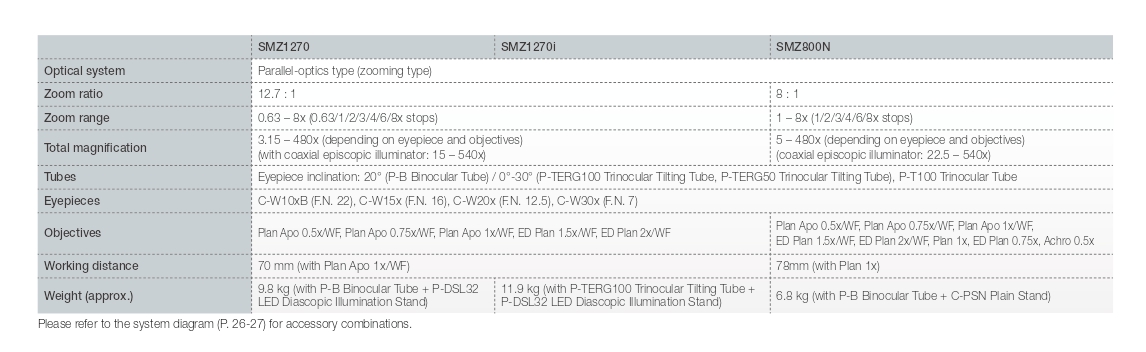

스펙
