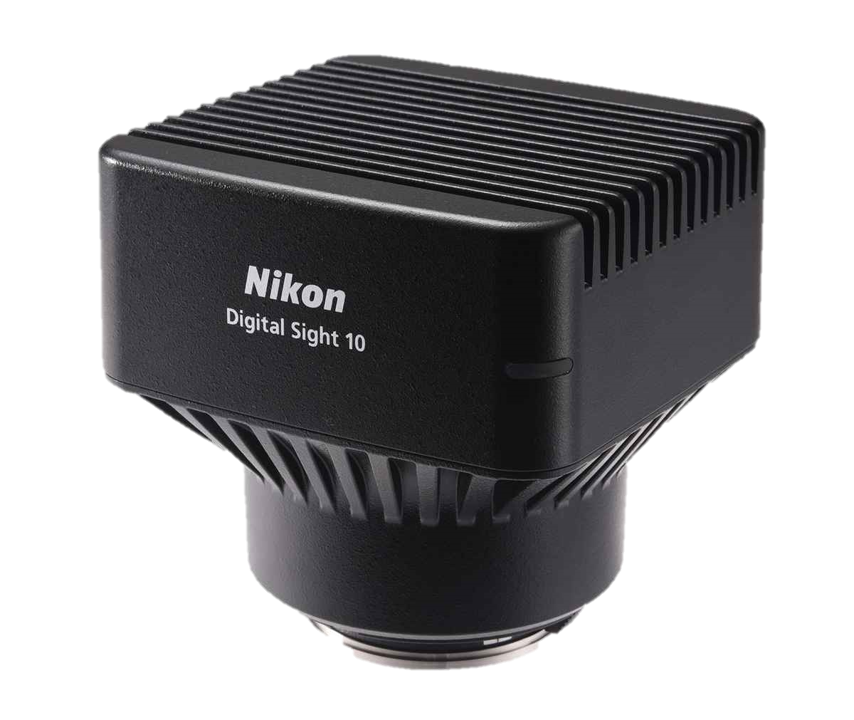

Equipped with CMOS sensor technologies perfected in Nikon’s DSLR cameras.
The Nikon FX format CMOS image sensor enables instantaneous capture of images in high definition.
Digital Sight 10 allows the unprecedented high resolution of 6K and switching color and monochrome capture with a single camera.
This high-performance model also features a high frame rate for fast focusing on high-definition images.
Note: All images on this page are examples from research applications.
The Digital Sight 10 is not registered for clinical use.
![](https://nitechbio.co.kr/data/goodsImages/GOODS1_164604107820220228184517.png)
Observation with a wide field of view
A full-frame CMOS image sensor for instantaneous one-shot image capture of wide areas
A 25 mm field of view (FOV), possible in combination with inverted microscopes, and upright microscopes, enabling the capture of images over a wider area in one shot. Tiled images can be created efficiently, cutting the time required for screening.
*Upright microscopes are supported only by the ECLIPSE Ni series (brightfield).
Stomach, SMA staining, 17x12 Tiled images (Objective: CFI Plan Apochromat 40XC)
Photo courtesy of :
High-definition observation
Easily capture fine details with 6K pixel resolution and high image quality
Microscopic images can be captured at up to 6000 x 3984 pixels (23.9 megapixels), ideal for image analysis and observation of fine structures.
-
Digital Sight 10
Kidney tissue (WGA: 488) (Objective: CFI Plan Apochromat VC 20X) -
Conventional model (DS-Ri2)
Fast live display
A frame rate that captures moving samples at the perfect instant
Digital Sight 10 is capable of live display of 6000 x 3984 pixel (23.9-megapixel) images at 9 frames/second or 1920 x 1080 pixel (2.1-megapixel) images at 66 frames/second.
Fine focusing is easy and stress-free. By using the ROI mode, it is possible to shoot only any place at a higher speed.
High sensitivity and low noise
Ideal for fluorescence observation requiring a wide field of view and high definition
Digital Sight 10 achieves high sensitivity equivalent to ISO 200 in color mode and ISO 800 in monochrome mode.
Clear fluorescence observation with a high signal-to-noise ratio is possible in both monochrome and color image acquisition.
Breast cancer, FISH method (Objective: CFI Plan Apochromat Lambda D 100X Oil)
Photo courtesy of: St
Ready for use in a wider range of observation scenarios
Color shooting and Monochrome shooting are possible with one unit (During manual operation)
-

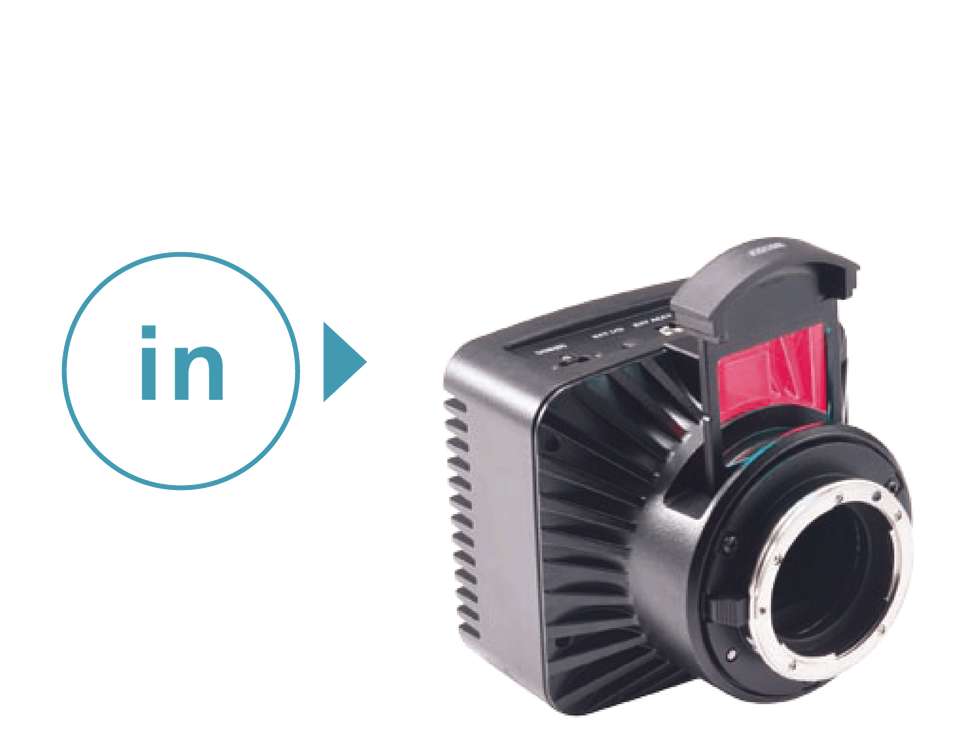

Color Mode
When inserting the color filter can shoot 400 to 680 nm in color -
Monochrome mode
When detaching the color filter capable of shooting 400 to 850 nm in Monochrome
*Replace with monochrome IR filter
Electric switching function (During electronic operation (using the 1x electronic adapter))
Easy color mode switching, either manually or electronically
Digital Sight 10 makes it possible to easily switch the color mode either electronically or manually by using specialized imaging software for electronic switching or attaching/detaching filters to the slot at the bottom of the microscope camera for manual switching.
*A 1x electronic adapter and a separate PC equipped with specialized imaging software, NIS-Elements, are required for electronic operation
-

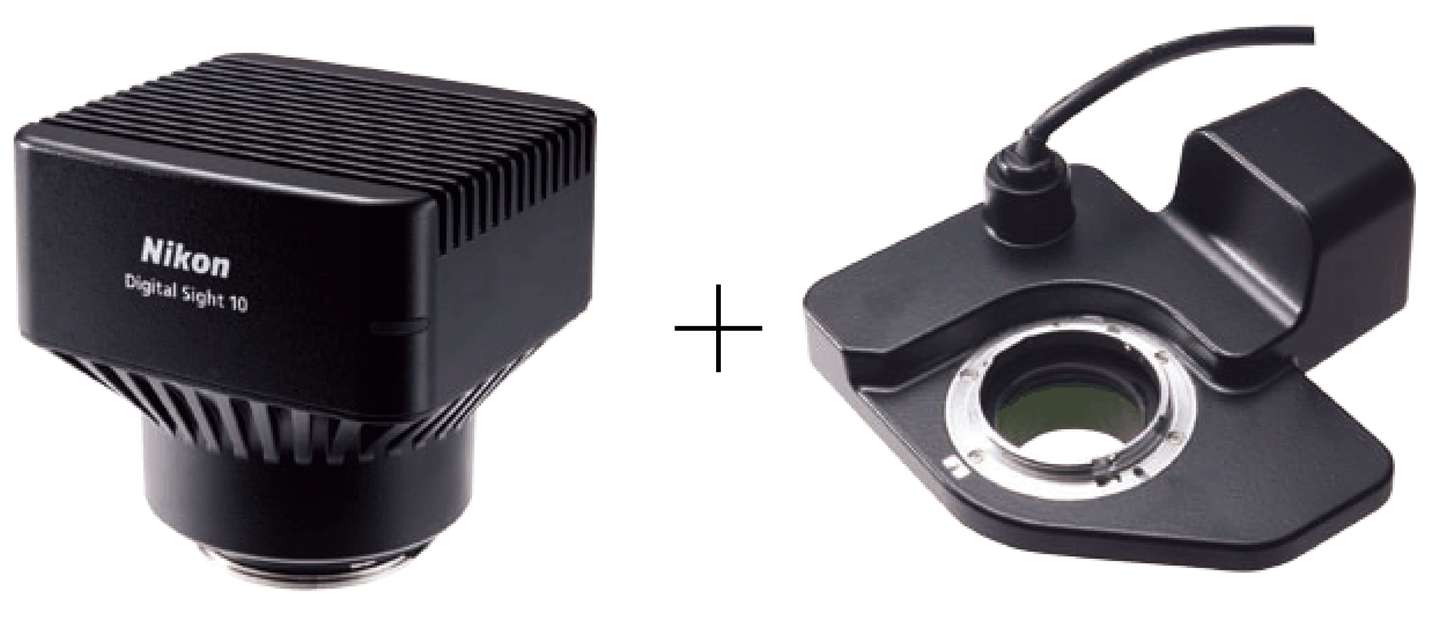

1x electronic adapter
-
Switch with a single action in the imaging software
Achieves consistent shooting with a single sensor: A convenient all-in-one camera for multiple observation applications
A single sensor captures both color and monochrome images, for consistent appearance even when switching color mode.
Easy image acquisition is possible without the hassle of using different cameras.
-
Brightfield (monochrome)
-
Brightfield (color)
-
Fluorescence (monochrome)
-
Fluorescence (monochrome)
A monochrome mode that acquires even near infrared images: Fluorescence observation with little damage to biological samples
Digital Sight 10's monochrome mode supports near-infrared (700 nm) fluorescence image capture, normally difficult to achieve with conventional color cameras.
As fluorescence sensitivity extends to the NIR region, this camera is suited to fluorescence image capture of thick samples and samples with weak phototoxicity.
For discriminating fine structures
Blurring and color bleeding are low even to the periphery, for images that are clear even when enlarged.
ECLIPSE Ni supports everyday observation and inspection of samples with high resolution and high color fidelity.
-
Upright microscope system ECLIPSE Ni
Objective lens for biological microscope Lambda D -
Kidney cancer, Vimentin staining (Objective: CFI Plan Apochromat Lambda D 20X)
Photo courtesy of: N
For model organisms
SMZ25/18 offers high definition at high frame rates.
Capture perfect, bright images without missing high-speed biological reactions.
Low noise makes this system ideal for time lapse imaging.
Stereoscopic microscope system SMZ25/18

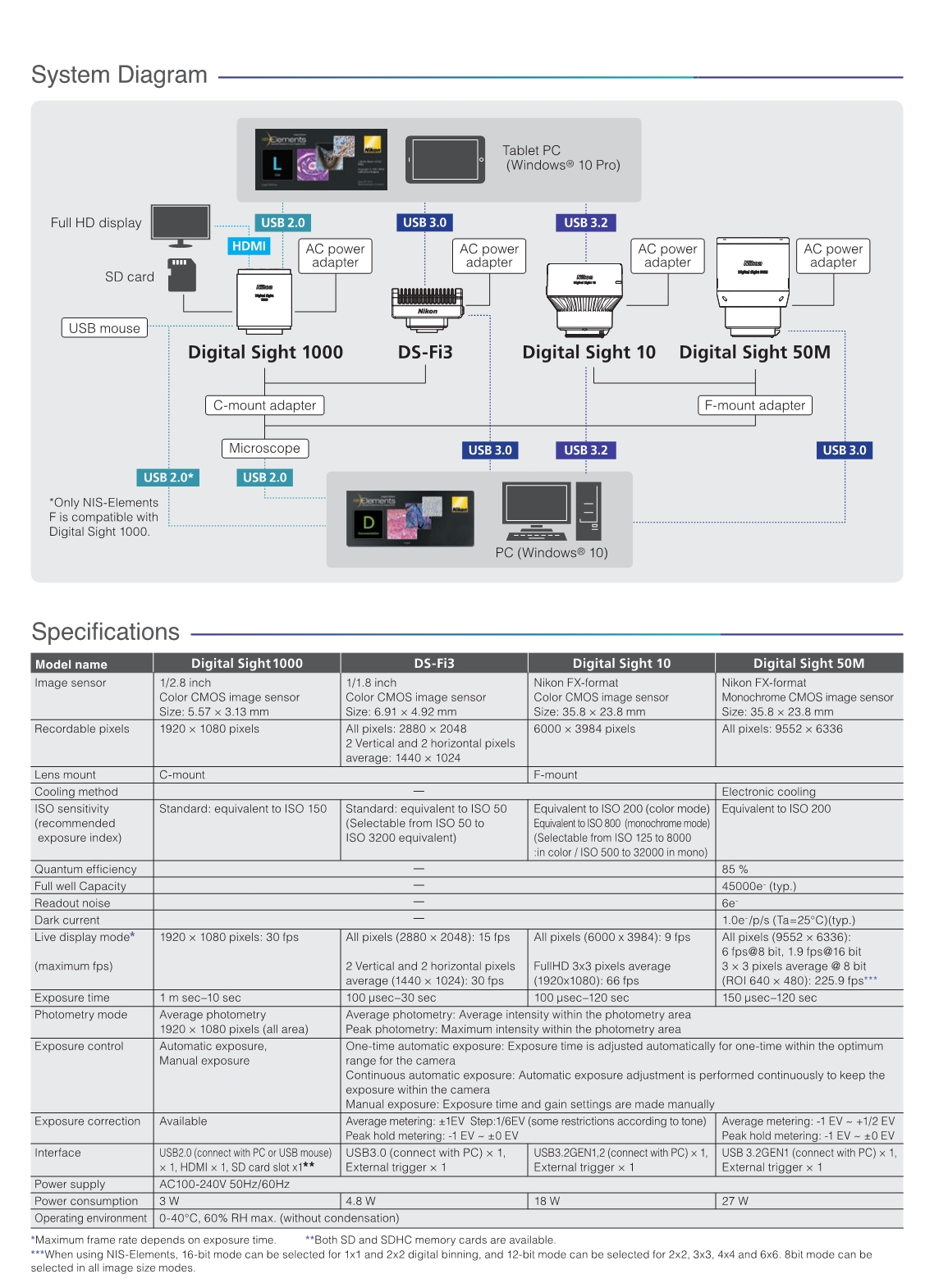

스펙
