A compact inverted research microscope configurable with a wide variety of observation methods.
The Eclipse Ts2R sets a new standard for the inverted research microscope, providing a wide range of observation methods and applications in a compact body that can easily fit in limited laboratory spaces while maintaining excellent operability.
![](https://nitechbio.co.kr/data/goodsImages/GOODS1_1593386514.png)

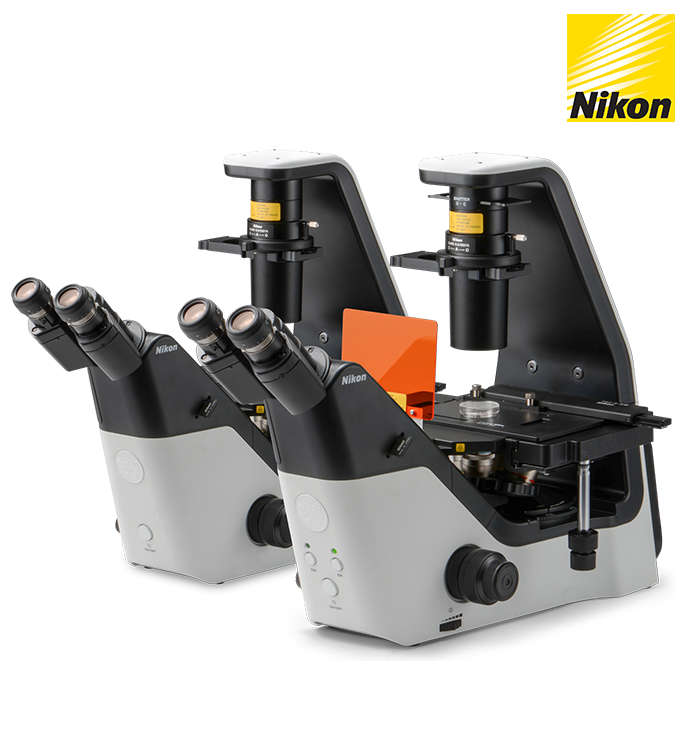

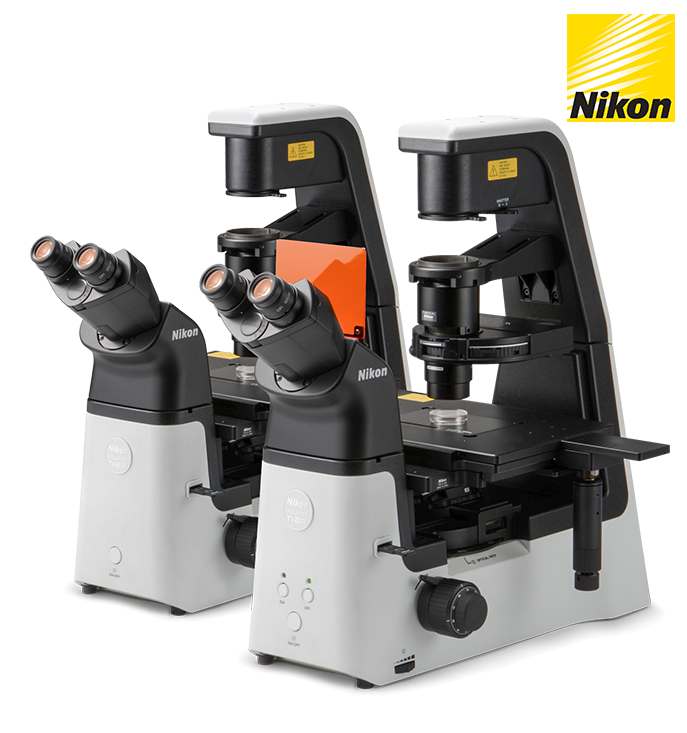

Left: Eclipse Ts2R (Diascopic illumination model)
Right: Eclipse Ts2R-FL (Diascopic and Epi-fluorescence illumination model)
Simple operations

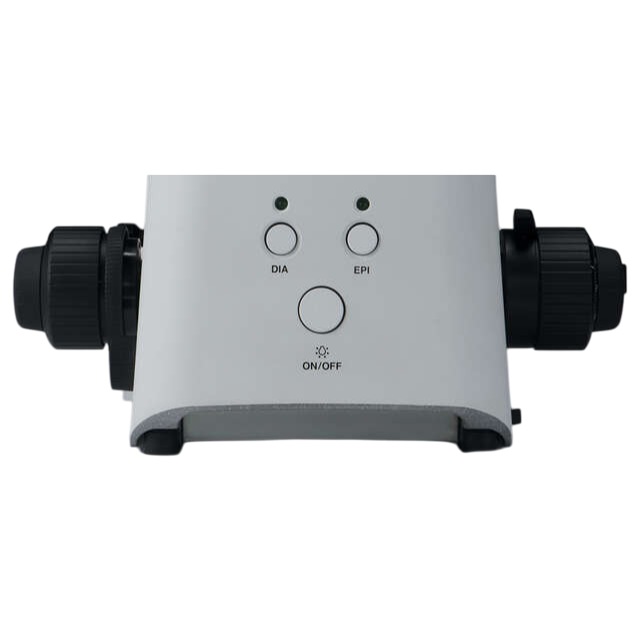

Control buttons on the Ts2R microscope are intuitively located for a streamlined workflow. The on/off and Diascopic/Epi-fluorescence switching controls are located on the front panel while buttons pertaining to either Diascopic or Epi-fluorescence control are zoned to the left and right sides of the microscope body, respectively.

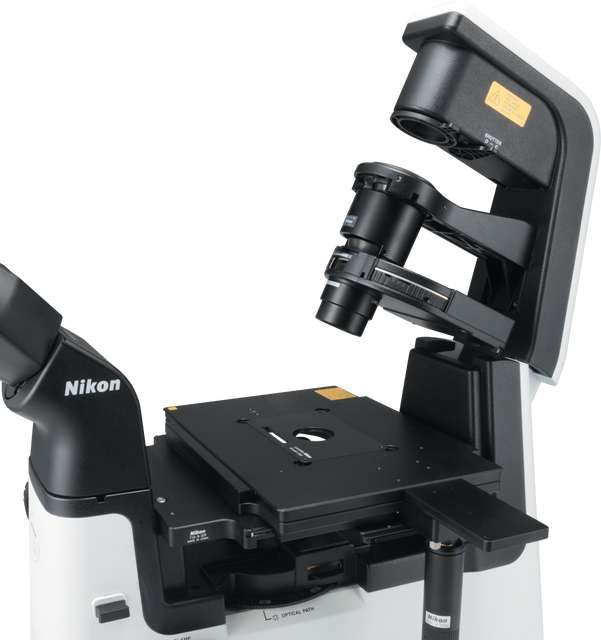

New ergonomic stage design for improved workflow
The Ts2R’s stage height has been lowered by approximately 30% compared to the standard research microscope*, thereby ensuring a comfortable hand position during repetitive operation and sample exchange. Moreover, lowering the support columns and positioning the camera port on the side of the tube improve sample visibility.
![](https://nitechbio.co.kr/data/bbsData/tile_81594086503.jpg)

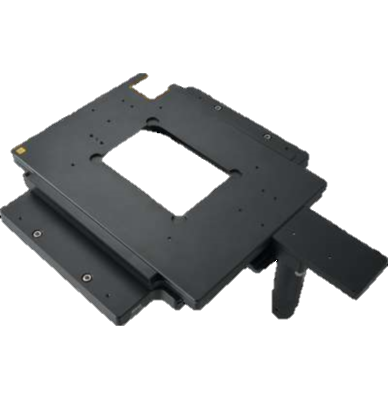

Newly developed mechanical stage
The Ts2R can be configured with an optional rectangular mechanical stage. This stage provides a long travel stroke, enabling users to observe an entire well plate from end-to-end. You can also set limits to the travel stroke (three-way) to match frequently used samples or vessels. The stage handle is offered in two lengths, long or short, to further accommodate the user's needs.
-
-

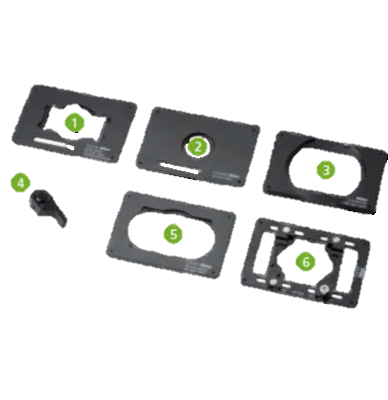

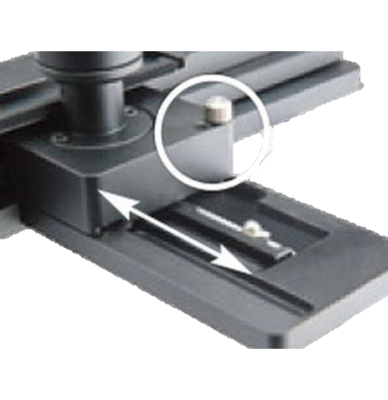

Stroke adjustment using the XY limit pin (three way)
-
➀ Slide glass holder
➁ Petri dish holder (35mm)
➂ Petri dish holder (100mm)
➃ Well plate clamper
➄ Terasaki
➅ Universal holder
High S/N Epi-fluorescence observation in bright rooms
The optional Contrast Shield accessory blocks room light, providing an easy and cost-effective method for achieving high signal-to-noise fluorescence observation in a brightly lit laboratory.
![](https://nitechbio.co.kr/data/bbsData/tile_51594087351.jpg)
Contrast Shield accessory (optional)
Versatile observation with LED illuminator
The high-intensity LED light source enables you to perform a wide variety of observation methods similar to the full-size Eclipse Ti2 inverted research microscope. The Ts2R-FL model, which offers Epi-fluorescence observation, provides four fluorescence channels, with 7 different wavelengths to choose from.
-
DIC
-
Epi-fluorescence
"Emboss Contrast" Contrasting Technique
Nikon's new contrasting technique is compatible with both plastic and glass culture dishes.
Unlike phase contrast or NAMC, Emboss Contrast does not require special objective lenses and therefore has minimal effect on Epi-fluorescence observation.
Emboss Contrast allows thick samples such as embryos to be easily observed in pseudo-three-dimensional image with great clarity.
Image courtesy of Hideaki Watanabe, Ph.D. and Hisataka Hasegawa, Ph.D.

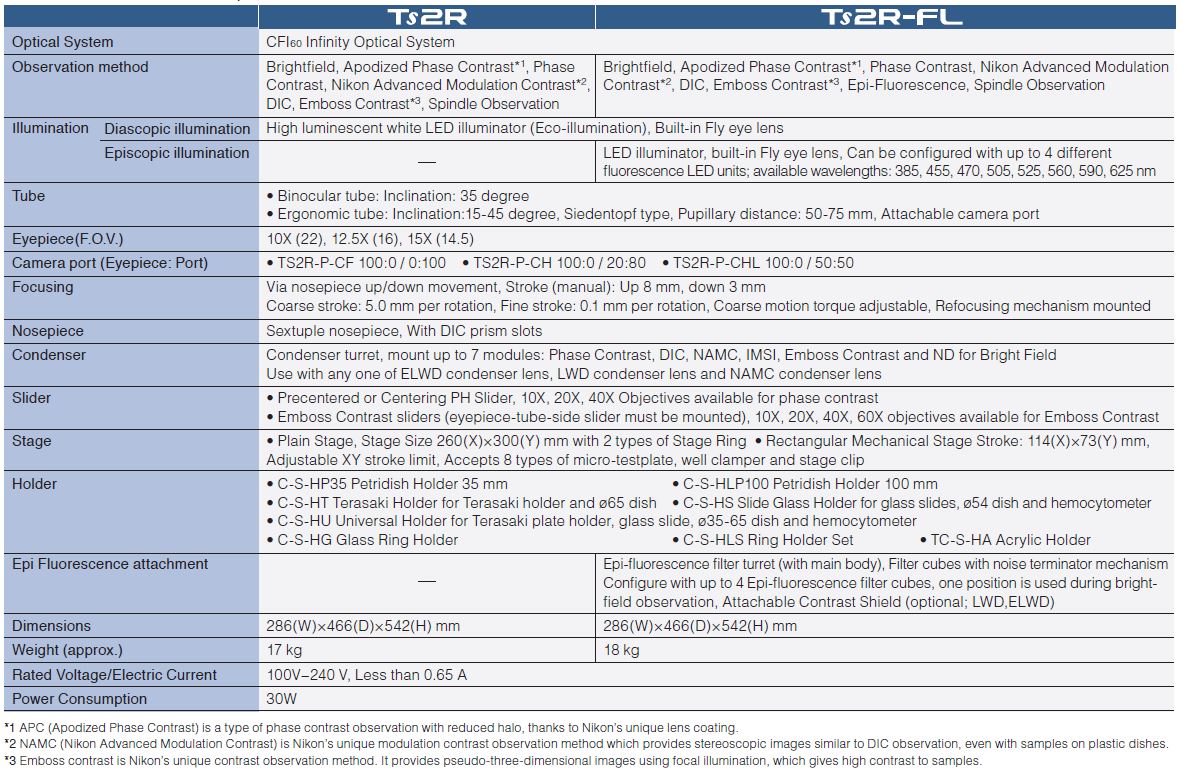

스펙
