Nikon's stereoscopic microscope with 7.5x zoom and 115 mm working distance — a superior model in this category.
Featuring a zoom magnification of 7.5X and a long working distance of 115mm, Nikon SMZ745 microscopes are well suited for both industrial and biomedical applications.
The adoption of a new total reflection prism produces brighter images with higher contrast, and the anti-mold design allows the microscope to be used in environments where the temperature and humidity are high.
The SMZ-745T trinocular model comes equipped with a microscope camera port and a built-in 0.55x c-mount adapter, permitting direct mounting of Nikon DS Series Digital Cameras.
![](https://nitechbio.co.kr/data/goodsImages/GOODS1_1592375357.png)
Left: SMZ745, Right: SMZ745T

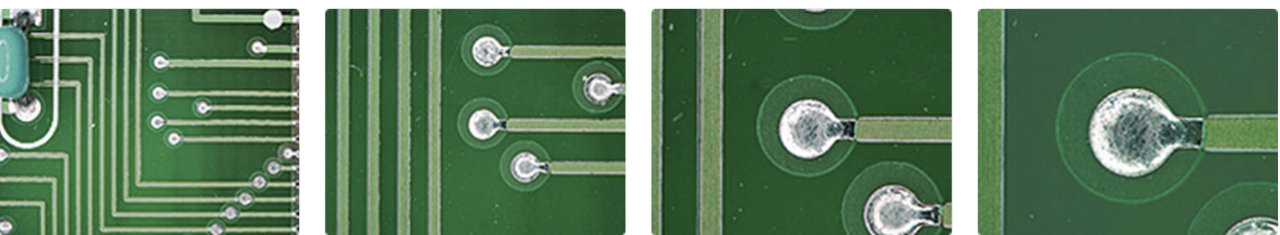

Extremely high 7.5x zoom range
The SMZ745/745T boasts a 7.5x zoom that incorporates a Greenough optical system.
The zoom range of 0.67x to 5x provides a broad observation range.
Superior 115mm working distance
In addition to high zoom ratio and magnification, the SMZ745/745T offers a long 115mm working distance.
G-AL 0.5x (W.D. 211 mm)
G-AL 0.7x (W.D. 150 mm)
G-AL 1x. (W.D. 115 mm)
G-AL 1.5x (W.D. 61 mm)
G-AL 2x. (W.D. 43.5 mm)
115mm working distance
Three “A” design
• Air-tight (SMZ745)
By making joints airtight, contamination from dust, oil, water and other contaminants is prevented.

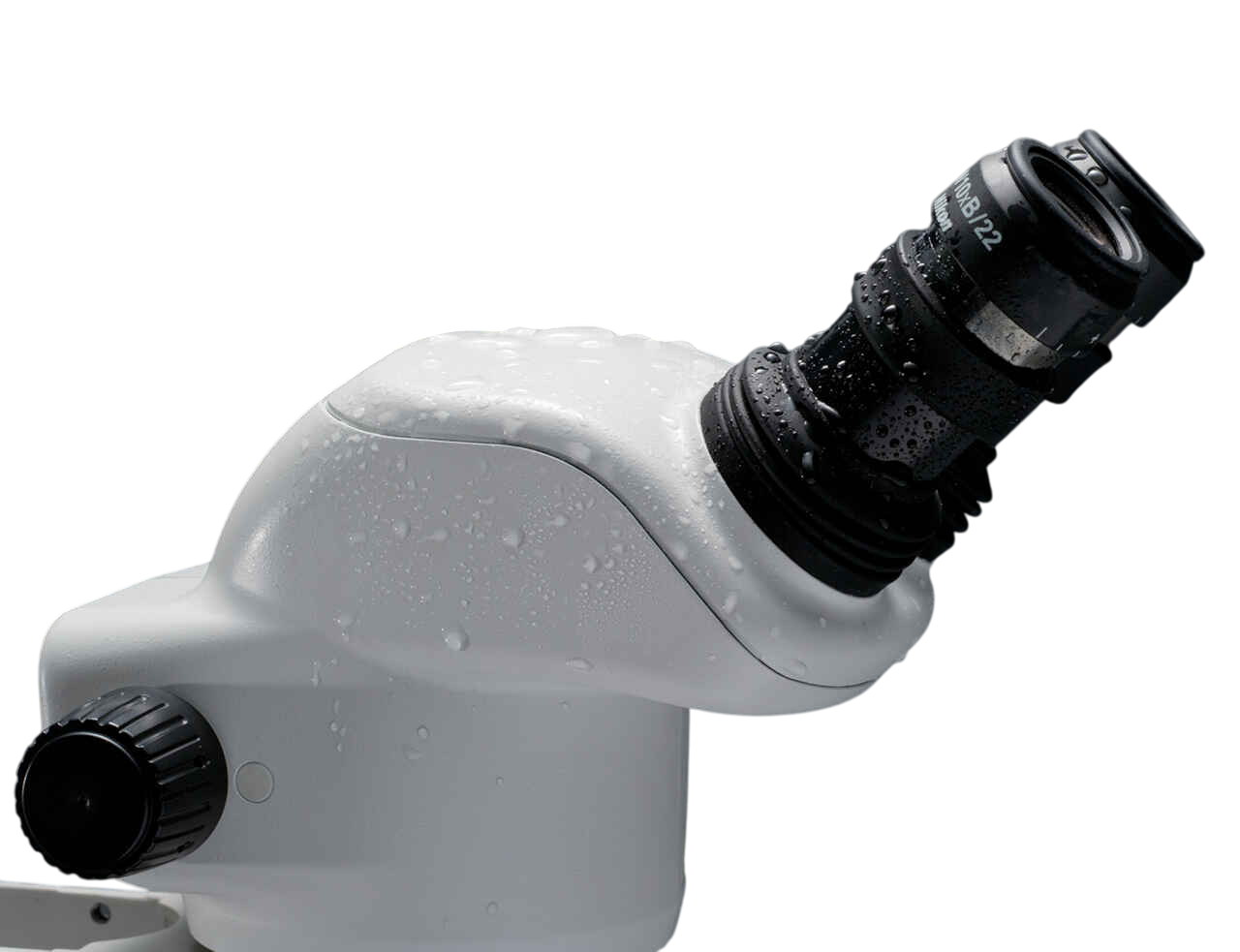

• Anti-fungal design (SMZ745/SMZ745T)
Anti-fungal design developed exclusively by Nikon ensures peace of mind when the microscope is used in environments subject to high heat or humidity.
• Anti-electrostatic (SMZ745/SMZ745T)
Static electricity built up within the microscope is discharged
Trinocular optical head is ideal for monitoring and digital imaging

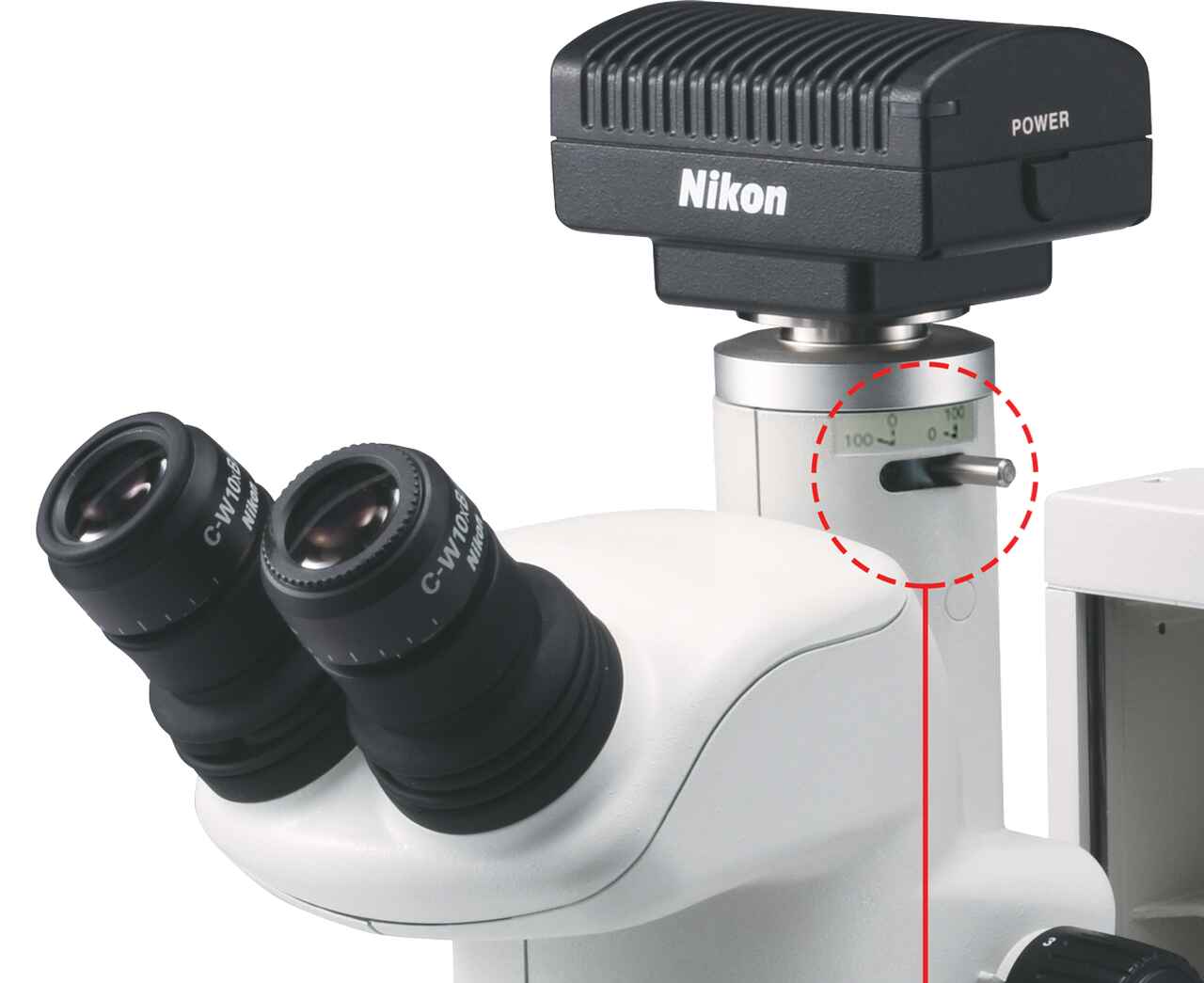

The SMZ745T incorporates an optical path switching lever that enables easy switchover between eyepiece and camera.
A Nikon Digital Sight Series Camera can be attached.
Optical path switching lever

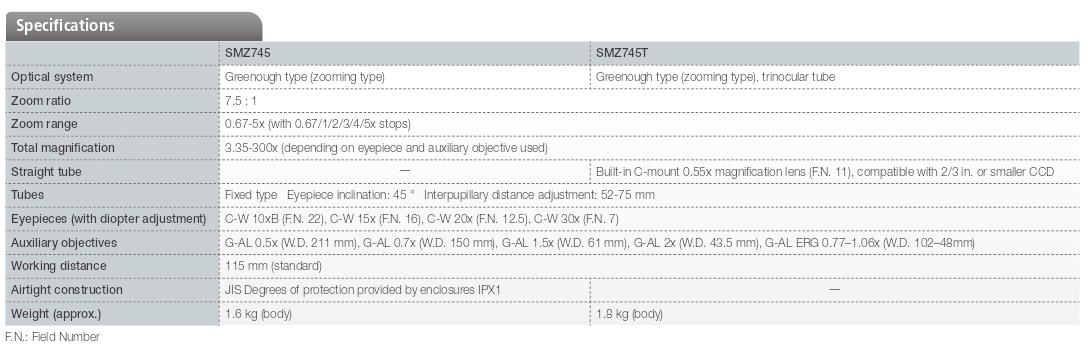

스펙
![](https://nitechbio.co.kr/data/goodsImages/ADD_GOODS5_159237535720221011093903.jpg)
