Zyla 4.2 PLUS is the latest sCMOS technology advancement from Andor. At its heart, Zyla 4.2 PLUS benefits from latest generation sCMOS sensor technology, delivering a further 10 % boost in QE, resulting in an unprecedented 82% QEmax.
Superior data transfer efficiency and Zyla’s unique 12-bit high speed mode combine to deliver an incredible 53 fps through the super-convenient USB 3.0 interface, with industry fastest Region of Interest (ROI) frame rates. With this capability, speed is on tap to allow users to follow faster dynamic processes with improved temporal resolution. Opt for the Camera Link version to access up to a blistering 100 fps (full resolution). Zyla 4.2 PLUS also offers industry-leading linearity (99.8%) for unparalleled quantitative accuracy of measurement across the full dynamic range.
The Zyla 4.2 is ideal for applications that benefit from optimal sensitivity and speed, such as calcium imaging, light sheet microscopy and super-resolution microscopy, as well as numerous high speed applications within astronomy. New application specific capabilities include LightScan PLUS, featuring FlexiScan & CycleMax functionality, permitting simple and flexible adaption of the Rolling Shutter scan mode to applications such as Scanning LightSheet Microscopy and Line Scan Confocal. Zyla 4.2 PLUS can also output data at a sustained 26,041 fps from a 2048(h) x 8(v) ROI, ideal for measuring diffusion coefficients in Fluorescence Correlation Spectroscopy (FCS).
The ‘4T’ (4-transistor) design of the sensor pixel permits more photons to enter, driving the front-illuminated Quantum Efficiency up to 82%. The 4T design also means that it is fundamentally a Rolling Shutter sensor. However, a feature called ‘Global Clear’ has been implemented, which allows for a simulated Global Exposure mode, which requires TTL communication between the camera and a pulsed light source, emulating the Global shutter exposure condition.
The Andor GPU Express library has been created to simplify and optimize data transfers from camera to a CUDA-enabled NVidia Graphical Processing Unit (GPU) card to facilitate accelerated GPU processing as part of the acquisition pipeline.
- 82% QE; 4.2 Megapixel
- 53 fps from USB 3.0; 100 fps Camera Link
- 0.9 e- read noise
- 99.8% linearity
- LightScan PLUS
![](https://nitechbio.co.kr/data/goodsImages/GOODS1_1615729531.png)

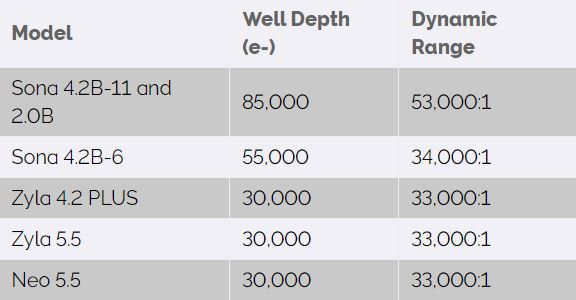

sCMOS Solutions for Extended Dynamic Range
Andor sCMOS cameras each offer an Extended Dynamic Range functionality, supported by a 16-bit data range. Harnessing an innovative ‘dual amplifier’ sensor architecture, we can access the maximum pixel well depth AND the lowest noise simultaneously, ensuring that we can quantify extremely weak and relatively bright signal regions in one snap.
- In biology, this functionality is useful for imaging and quantifying many challenging samples, such as neurons.
- In the physical sciences, high dynamic range capability is central to countless measurement types, such as in astronomical photometry.
* Furthermore, to achieve best in class quantification accuracy, Andor have implemented enhanced on-head intelligence to deliver market-leading linearity of > 99.8%.
