Microscopes for dispersion staining allow for qualitative analysis and identification of asbestos

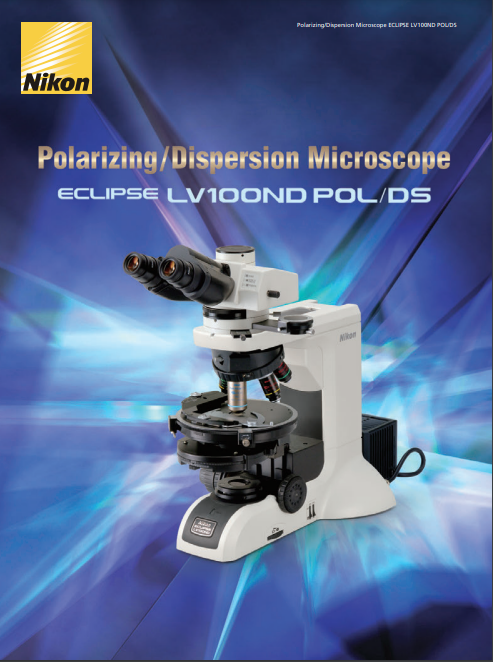

Polarized light microscopes can measure the properties of asbestos, such as refractive indices, birefringence, retardation, extinction angles, pleochroism and signs of elongation, helping in the identification of asbestos. LV100ND POL/DS is a high-performance, polarized light microscope with accessories that enable dispersion staining observation at up to 400x magnification.
![](https://nitechbio.co.kr/data/goodsImages/GOODS1_1593363526.png)
Highlights
›The LV100ND POL/DS employs optics with high extinction factors, facilitating detection and observation of high-precision optical properties.
›The LV100ND POL/DS enables analysis of birefringence, extinction angles, signs of elongation, refractive indices, birefringence magnitudes and pleochroism of asbestos.
›Changing the objectives and PH modules allows observation of asbestos dispersion colors corresponding to the refractive indices of the immersion liquid. The LV100ND POL/DS enables both quantitative analysis and dispersion staining observation of asbestos.
›A fully rotatable circular graduated stage offers trouble-free sample rotation and accurate analysis during polarization observation.
Birefringence
Mixture of rock wool and chrysotile
Extinction angle
Amosite
Sign of elongation
Refractive index (refraction index of the liquid nD=1.605)
Chrysotile and amosite
Retardation (optical path difference) for obtaining birefringence magnitude
Amosite
Pleochroism
Crosidolite
Dispersion colors

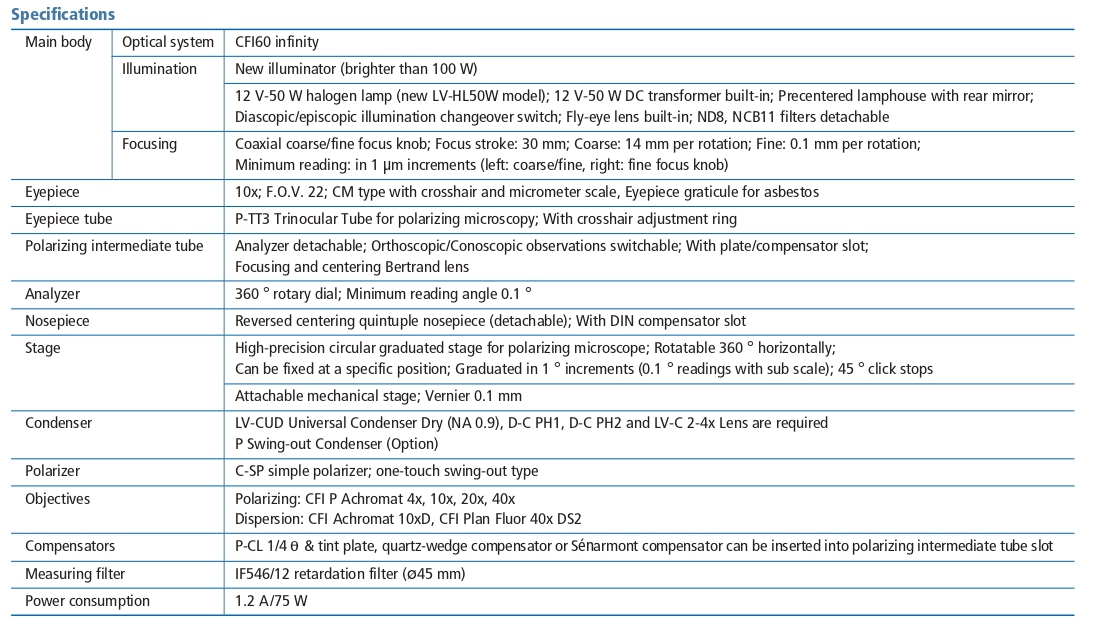

스펙
![](https://nitechbio.co.kr/data/goodsImages/ADD_GOODS5_159336352620221011095332.jpg)
