Clinical and laboratory microscope featuring LED illumination*, providing stress-free operation for routine use
To meet the demands of clinical laboratory specialists and researchers, Nikon has reviewed all aspects of microscope usability to develop the Eclipse Ci series of microscopes, which combine superior functionality with operational ease.
The Ci is designed to ensure nature posture during viewing of images, sample changing and image capture. Bright, eco-friendly LED illumination reduces the need for frequent lamp replacement*.
A variety of accessories are available that support various imaging techniques.
* Halogen model (Ci-S) is also available
-
ECLIPSE Ci-E
Motorized model with LED illumination
Equipped with motorized nosepiece and autom -
ECLIPSE Ci-L plus
Manual model with LED illumination
Featuring bright, eco-friendly LED illuminatio -
ECLIPSE Ci-S
Manual model with halogen illumination
Suitable for applications requiring a trad
Motorized magnification switching
* Ci-E
Magnification can be easily changed during observation with the touch of a button on the Eclipse Ci-E microscope body.
The buttons can also be programmed for specific objective lenses for easy switching between specific pairs.
User-defined light intensity for each magnification is automatically saved and reproduced when magnification is changed.
The remote control pad can also be used to easily change magnifications.
-
Nosepiece rotation buttons
-
Remote control pad
Bright and uniform Eco-illumination
* Ci-E * Ci-L plus
The Eco-illumination* is a low-power-consuming, eco-friendly illumination system that produces uniform brightness and reduces the cost and effort of lamp replacement, thanks to its 60,000 hour, high-luminescent LED.
By combining a collimator lens, fly-eye optics and LED illumination, bright and edge-to-edge uniform images can be obtained even at high magnifications.
The LED illuminator features low-heat generation and provides the same color temperature at every magnification.
* Halogen model (Ci-S) is also available
Enhanced operational ease
* Ci-E * Ci-L plus * Ci-S
Observation with a natural posture
Using the ergonomic binocular tube, which features an eyepiece that can be inclined from 10° to 30°and extended up to 40 mm, the microscope can be adjusted for natural posture.
The eyelevel riser lifts the eyepiece tube in 25 mm increments (up to 100 mm*) and can easily be adapted to suit users with different eye-point heights.
* Up to 50 mm with ergonomic binocular tube.
-
Ergonomic binocular tube
-
-
Eyelevel riser
User-friendly stage operation
With the addition of a nosepiece spacer, the stage height can be lowered 20 mm from the standard position, reducing strain during frequent specimen change.
The stage handle height can also be changed to ensure a comfortable hand position.
The stage height can be locked using the refocusing knob, allowing quick refocusing after specimen changes.
The stage is coated with a high-durability, scratch-resistant ceramic coating.
-
without spacer (left), with spacer (right)
-
Height adjustable stage handle
-
Ceramic-coated stage
Easy on the eyes, even during extended use
* Ci-L plus
Maintains optimal brightness
The light intensity management (LIM) function developed by Nikon automatically stores any changes to brightness settings.
This helps avoid drastic changes in brightness when switching between different magnifications during observation, thereby helping to mitigate eye strain.
-
Low-magnification objective lens .../... High-magnification objective lens
( with LIM ) -
Low-magnification objective lens .../... High-magnification objective lens
( without LIM )
Keep the same observation posture with automatic brightness adjustment
The LIM function saves and recalls the optimal brightness level for each objective, eliminating the need to manually adjust the illuminator and change posture every time you switch objective lenses.
Enjoy enhanced efficiency during observations

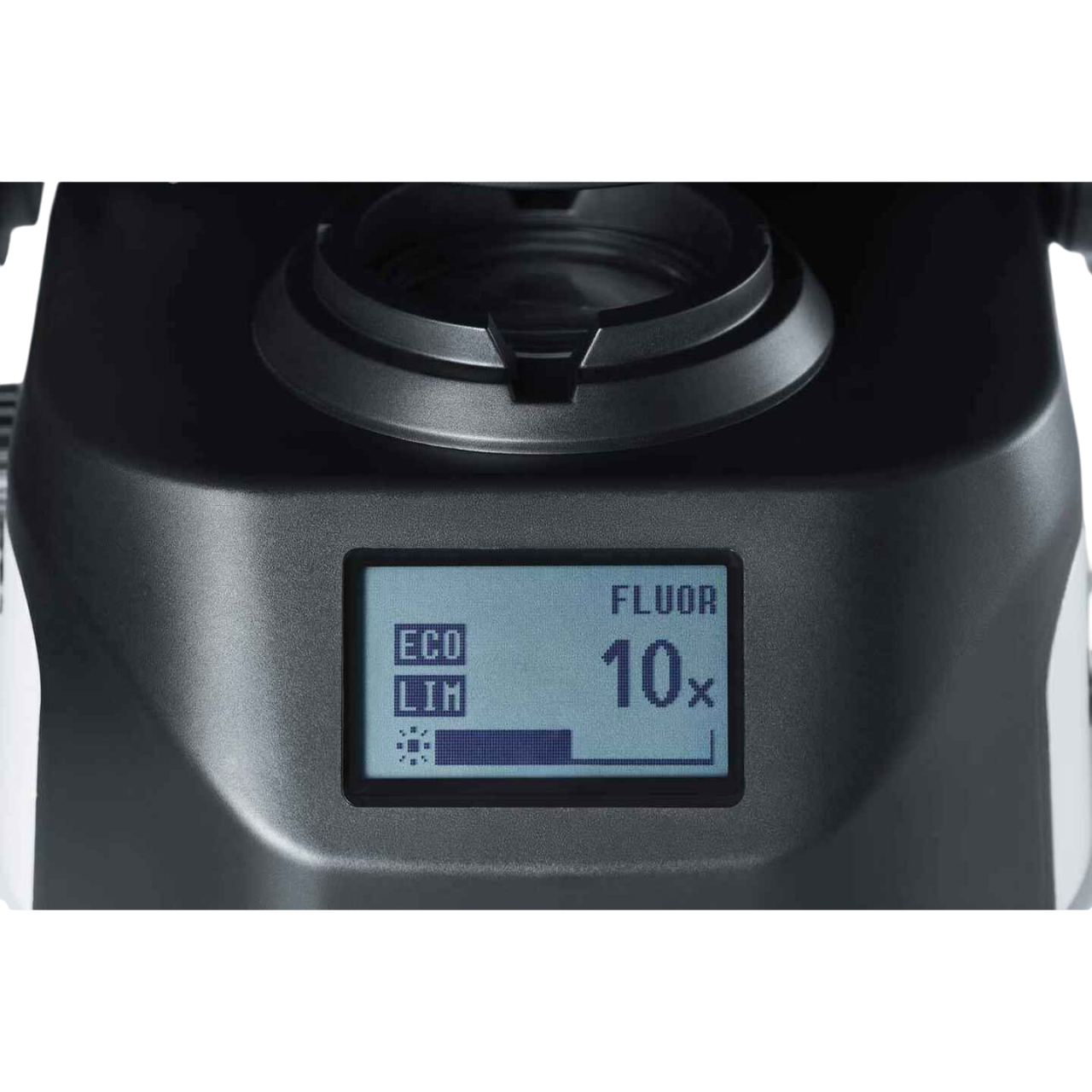

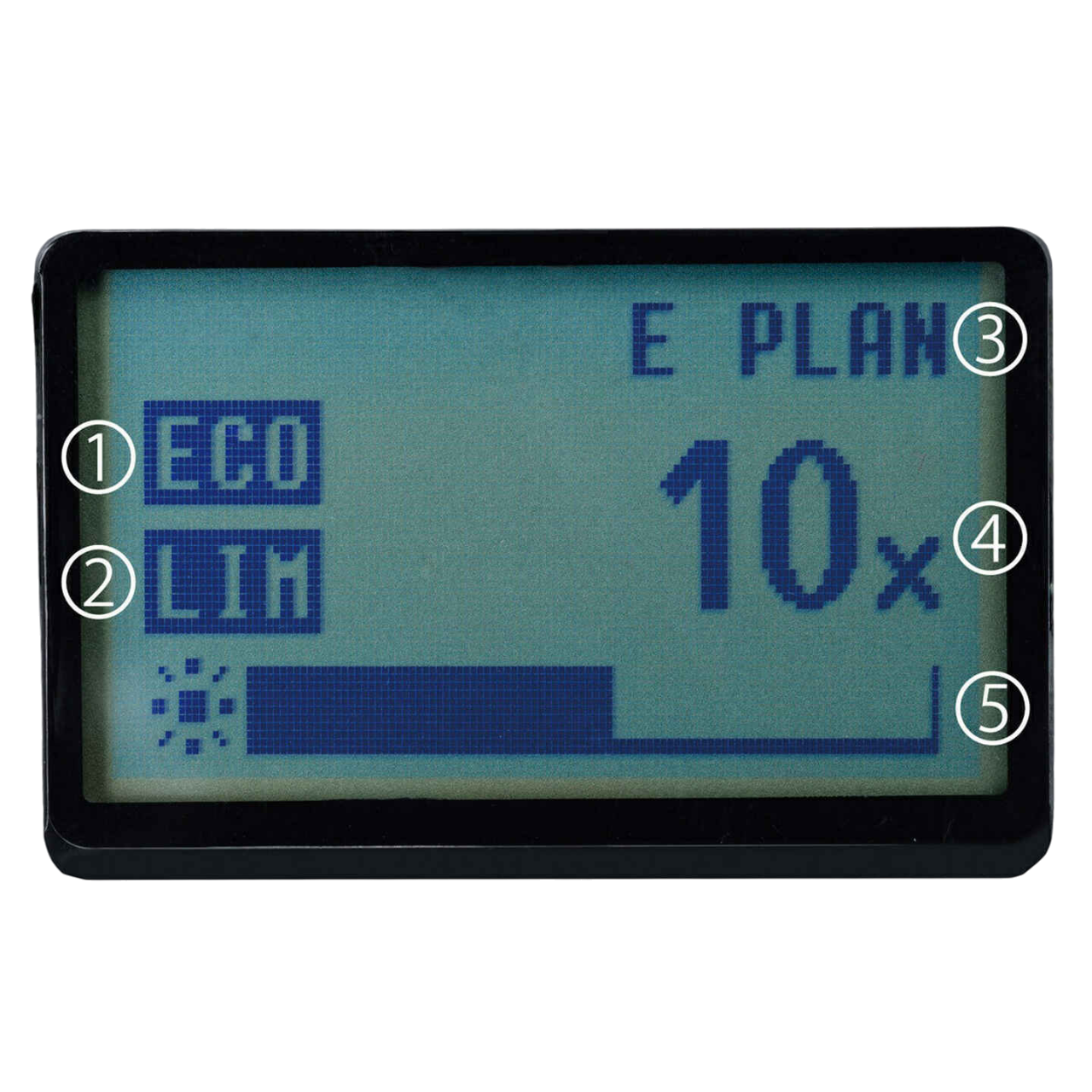

Status Display for easy confirmation at a glance
Quickly and easily check magnification and brightness settings using the display at the base of the microscope without changing your observation posture.
Turning the nosepiece automatically adjusts the scale bar
The scale bar on the PC display changes automatically to match the magnification level, eliminating the need to set the scale manually.
*Sold separately: Software (NIS-Elements D / BR / AR), Nikon recommended camera required
Versatile observation techniques
* Ci-E * Ci-L plus * Ci-S
Phase contrast
High-contrast images with neutral background coloration regardless of the magnification range can be captured.
This observation technique is suitable for observation of unstained structures.
-
-
Phase contrast accessories and objective lenses
Simple polarizing
Ideal for observing bi-refringent samples such as collagen, amyloids and crystals.
* Two types of analyzer are available: intermediate tube type and nosepiece slider type.
-
2.8-Dihydroxyadenine crystals, Simple polarizing, CFI Plan Fluor 40X
Department of Clinical labora -
Simple polarizing accessories
Sensitive color polarizing
Enables Identification of uric acid crystals by changes in the interference color.
This technique is ideal for gout and pseudo-gout tests.
* Two types of analyzer are available: intermediate tube type and nosepiece slider type.
-
Sodium urate crystals, Sensitive color polarizing, CFI Plan Fluor 40X
Department of Clinical labor -
Sensitive color polarizing accessories
Epi-fluorescence
Compact epi-fluorescence attachments that utilize noise terminating mechanisms allow weakly fluorescing specimens to be captured with great clarity and brightness.
Both CI-FL epi-fluorescence attachment (incorporates up to 4 filter cubes) and D-FL epi-fluorescence attachment (incorporates up to 6 filter cubes) allow easy switching of filter cubes.
High-optical-performance objective lenses for epi-fluorescence imaging, including the CFI Plan Apochromat Lambda series and the CFI Plan Fluor series, are available.
-
-
CI-FL epi-fluorescence attachment and filter cubes
Darkfield
Enables clear observation of blood or minute structures such as flagella.
Dry- and oil-type condensers are available. An expander lens is utilized for brighter imaging.
