Quickly and efficiently search wide fields of view and capture and analyze high-definition images
The monochrome digital camera Digital Sight 50M for microscopes is optimized to increase workflow efficiency.
In addition to its large number of pixels, large field of view, and speed, it comes with dedicated software that makes it effective for screening large volumes of samples.
It is perfect for not only academic research but also drug discovery.

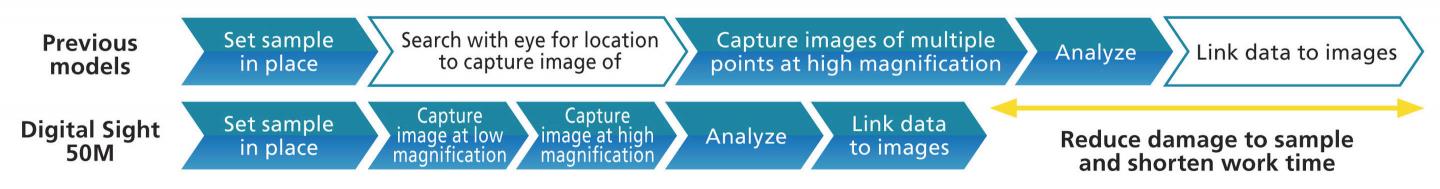

Dramatically improves the workflow for capturing images of and analyzing large volumes of samples

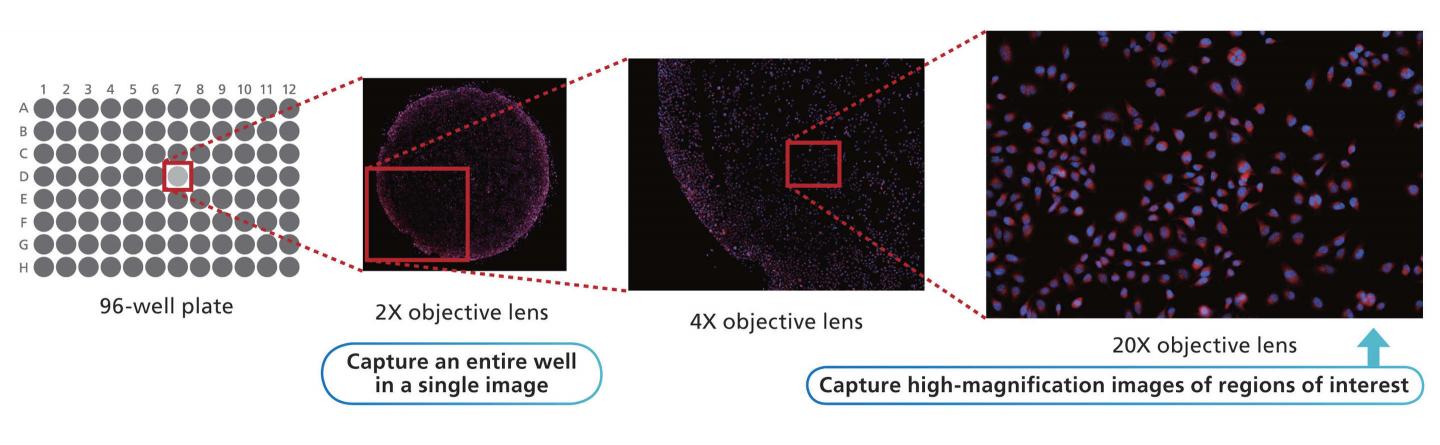

Wide field of view and high resolution for single-shot images of individual wells
With an actual field of view of 7 mm when using a 2X objective lens, it is possible to capture single-shot images of wide areas.
You can also quickly check both the overall image of large volumes of samples, such as in well plates, and regions of interest of a sample, which increases reproducibility of experiments.
The ultra-high 9K resolution increases the reliability of quantitative analysis
The improved Digital Sight 50M boasts 3.8 times the number of pixels and 2.5 times the resolution of previous models.
Even when using a low-magnification, high-NA objective lens, it fully demonstrates optical capabilities.
It is also possible to obtain highly reliable data of small regions when analyzing images.
-

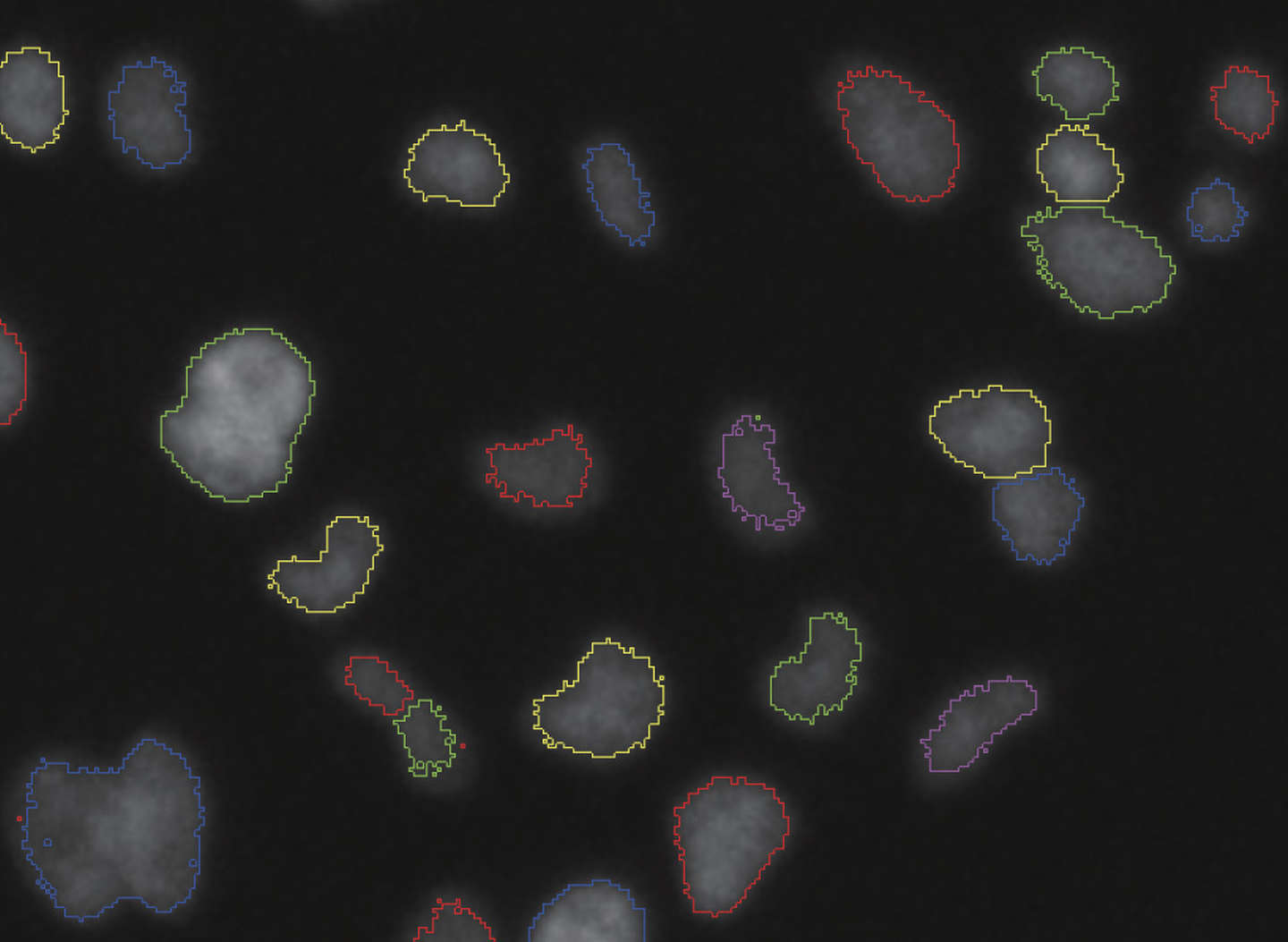

Digital Sight 50M
-

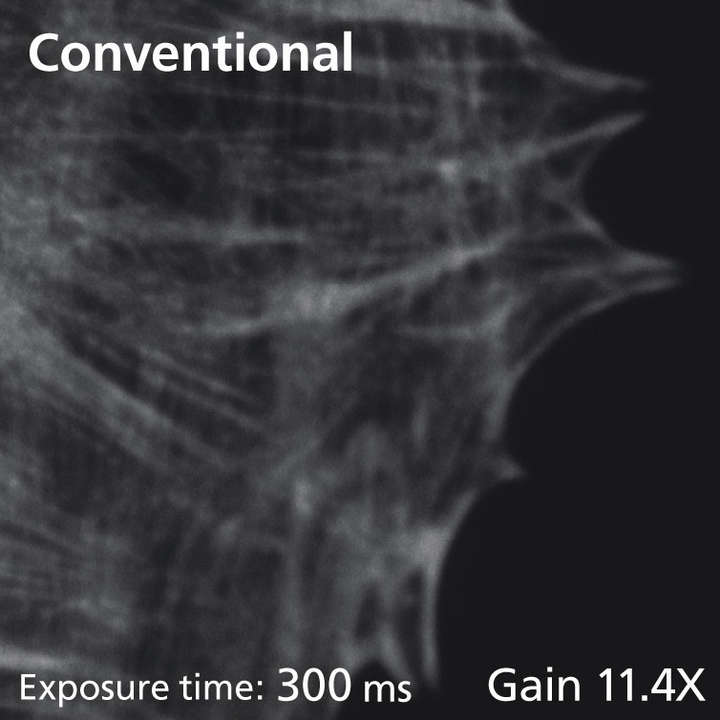

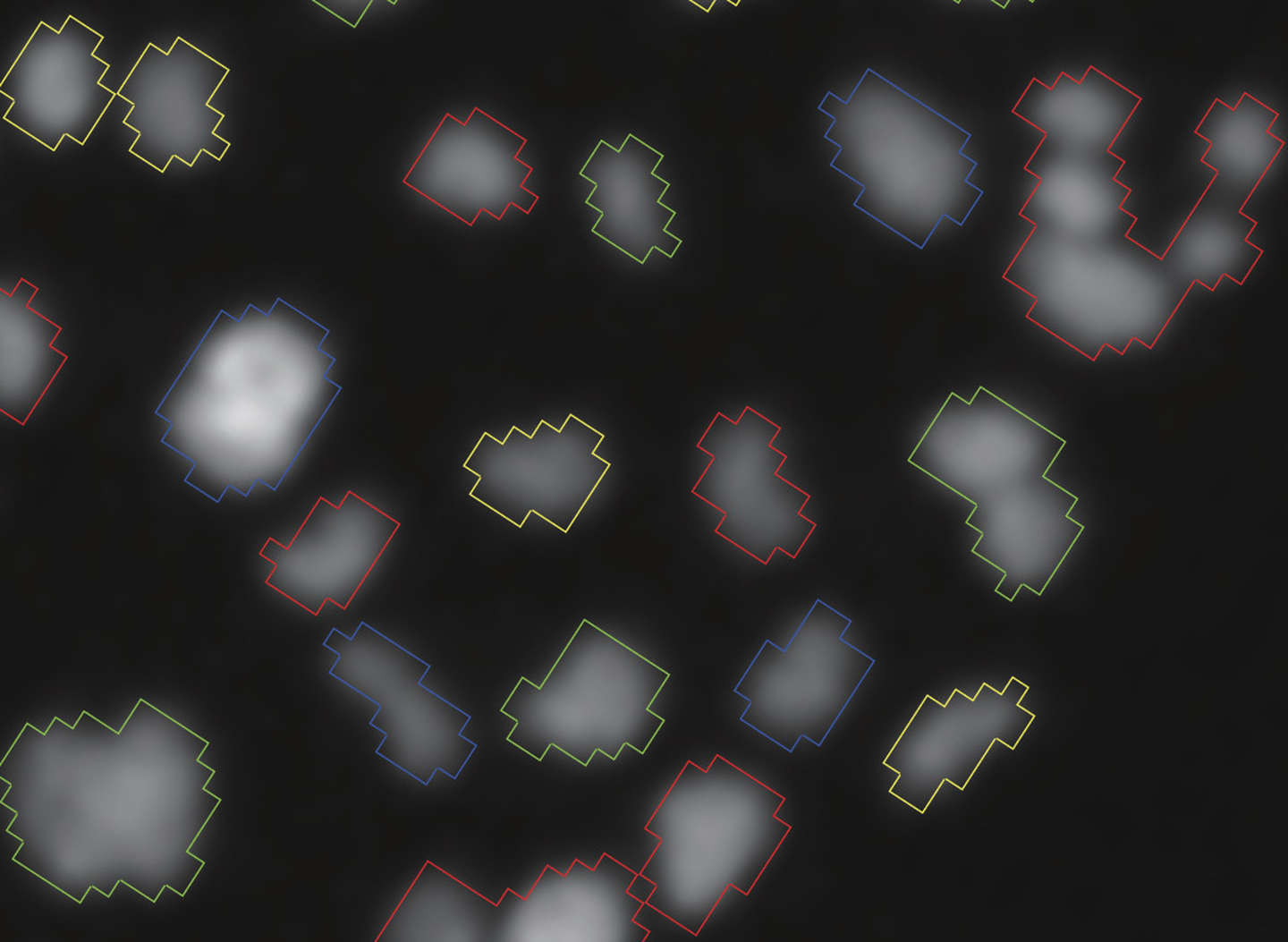

Conventional
Includes software suited to large-volume screening
The Digital Sight 50M can be integrated with NIS-Elements HC software to support pre- and post-capture analysis. It is possible to set up a flow from well selection, automatic detection of image ROI, and displaying of analysis results.
- Plate view
- Heat map
- Sample label
- Binarized image
- Graphs (histogram, scatter bot, bar graph, etc)
-

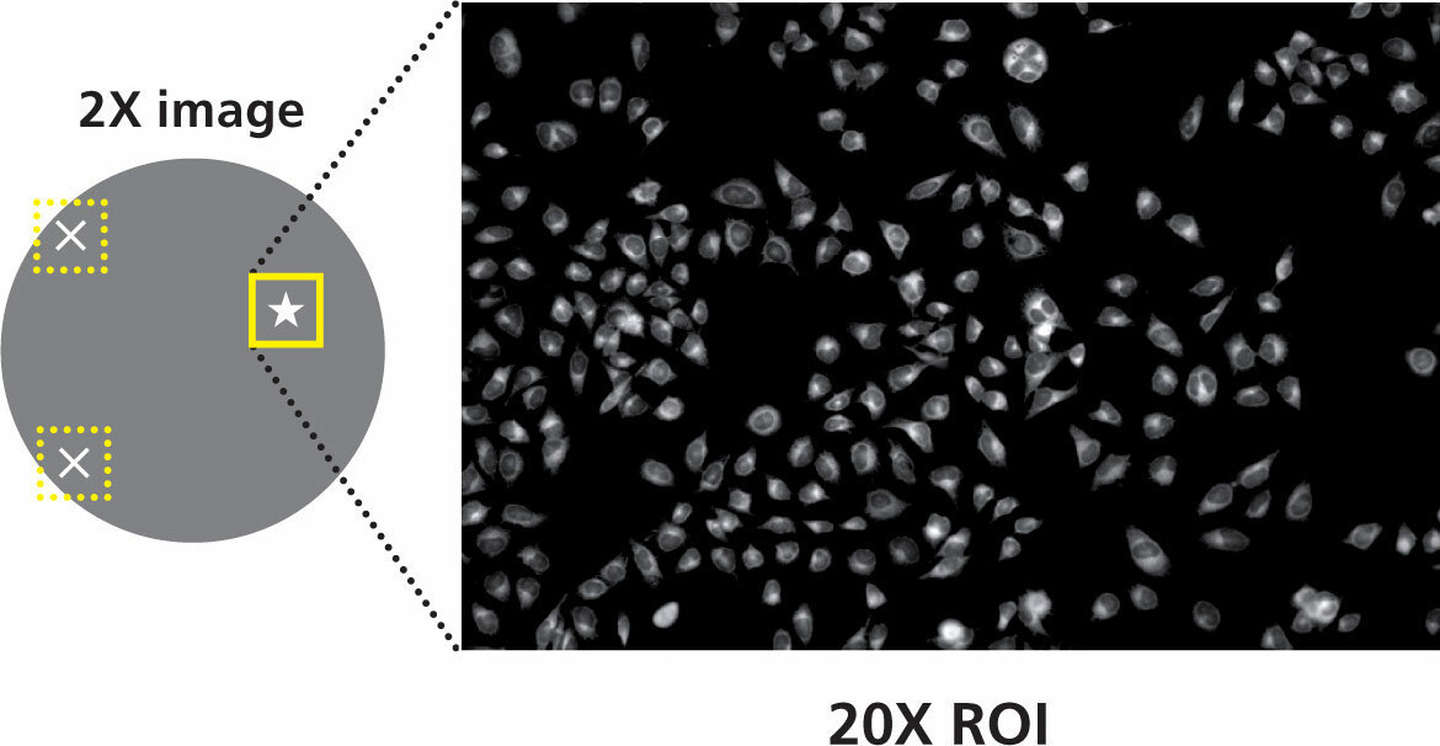

For example, automatically detect regions with uniform cell density or distribution and then capture image at high-magnification
-

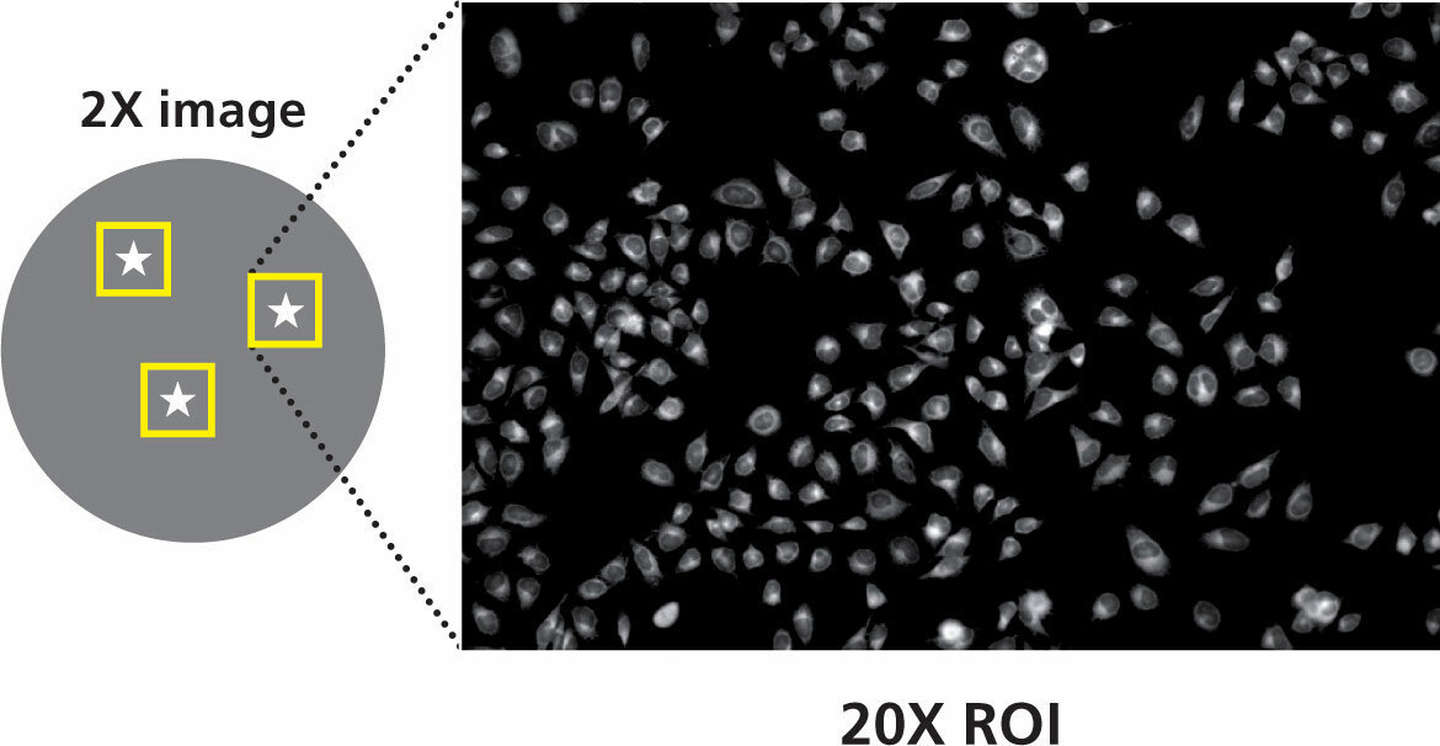

Automatically detect regions that meet certain experimental conditions and capture image at high-magnification
High sensitivity
Detects even faint fluorescent signals
The Digital Sight 50M combines high spatial resolution with a 3.76um pixel size and achieves high quantum efficiency, peaking at 85%, which allows for even dim samples to be detected.
Low noise
Acquires dim fluorescent signals with ultra-low noise
Both the 6e-read noise coupled with a large full-well capacity and 1.0e-/p/s dark current allow the acquisition of 14-bit fluorescence images with very little noise.
3 types of camera adapters
2.5X, 1.8X, and 1X adapters are available for different uses
The Digital Sight 50M offers the large CIS (Nikon FX format) that makes wide field-of-view (FOV25) observations possible.
There are three adapters for different uses: 2.5X and 1.8X adapters for high-resolution single shots of 60 megapixel; and a 1X adapter for samples that require high sensitivity and low noise, such as image tiling.
Numerous image acquisition modes
Flexible balance of quality and speed
There are three binning operation modes, making it possible to select the required speed and image quality.
Maximum frame rate of 225.9 fps for high-speed imaging.
Fast live display
Fast focusing, even with fluorescence images
A high-sensitivity CMOS sensor and high-speed data transfer using USB 3.2 Gen 1 are combined to achieve 6 fps at the maximum number of pixels (60 megapixels) or a maximum speed of 27 fps (6.7 megapixels).
This makes it possible to quickly focus on samples.

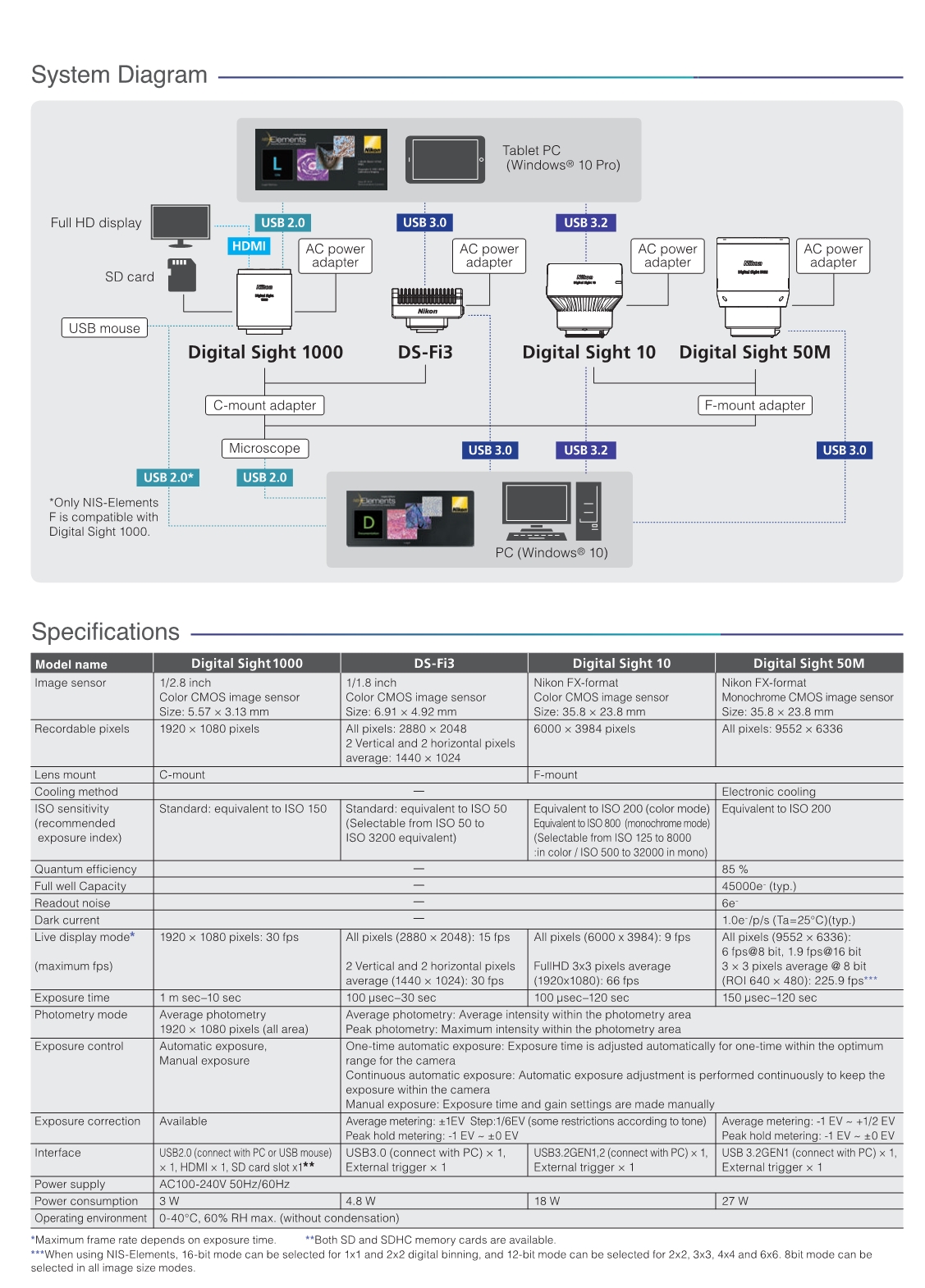

스펙
